Carbon Compatibility Report

Report for: dataComet-Secure

Report date: 6/20/2001

File Creator: 3278

Data gathered by analyzer version: 1.3

File Type: APPL

Data gathered on: 6/20/2001

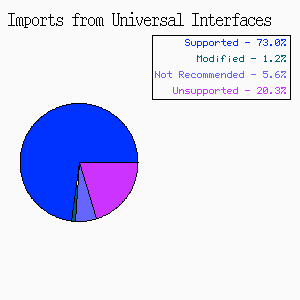

Summary

Test

Number

Analysis of Imports

Supported API

313

Supported with Modifications

5

Supported But Not Recommended

24

Unsupported API

87

Analysis of Access to Low Memory Addresses

Analysis of Resources Loaded into System Heap

Analysis of Imports

Supported with Modifications

Common OS Services
Process Manager
Carbon supports most of the Process Manager. The exception is the LaunchDeskAccessory function, which is not supported.

Note that some Process Manager functions access a ProcessInfoRec data structure, which contains fields that are no longer applicable in a preemptively scheduled environment (for example, the processLocation, processFreeMem, and processActiveTime fields). Your application should avoid accessing such fields. Changes to the memory model may also affect certain fields.

GetProcessInformation

The processActiveTime field of the returned ProcessInfoRec structure is not used in Carbon on Max OS X. In Carbon on Mac OS 8 and 9, the accumulated amount of CPU time used by the process is returned in this field. In Carbon on Mac OS X, the value returned in this field is always 0. Other fields in the ProcessInfoRec structure may also no longer be applicable. Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.
Hardware Interfaces
Device Manager
Carbon does not support the Device Manager as an interface for installing or interacting with device drivers. Carbon supports only the Device Manager APIs that allow applications to read and write to open files.

Other software products (such as desk accessories) that have relied on the Device Manager interface in the past should be converted into Carbon applications.

In Mac OS X, applications can access serial devices through the device file system. An application uses the I/O Kit to obtain a path to a device file in the /dev directory. It can then use traditional UNIX serial port access through the POSIX termios API. For more detail, see Inside Mac OS X: Accessing Hardware From Applications.

PBReadSync

This function is only supported for reading from open files. Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

PBWriteAsync

This function is only supported for writing to open files. Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

PBWriteSync

This function is only supported for writing to open files. Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.
Human Interface Toolbox
Window Manager
Carbon supports the Window Manager. Be aware, however, that if you use custom window definition procedures (also known as WDEFs), you must compile them as PowerPC-native code. In addition:

• Your application must use the functions defined by the Window Manager whenever it creates and disposes of Window Manager data structures. For example, instead of directly creating and disposing of window records, applications must call such Window Manager functions as GetNewCWindow and DisposeWindow.

• You must revise your application so that it accesses Window Manager data structures only through accessor functions.

• You are encouraged to adopt the standard Mac OS 8 window definition procedures in your application. Applications that use the standard Mac OS 8 window definition procedures inherit the Mac OS 8 human interface appearance. Applications that use custom window definition procedures work correctly, but because custom definition procedures invoke their own drawing routines, Mac OS 8 can’t draw these applications with the current appearance.

NewWindow

In Carbon, you cannot pass your own storage in to the wStorage parameter.

In Carbon, NewWindow is functionally equivalent to the NewCWindow, in that NewWindow returns a color window instead of a monochrome window. Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

Supported But Not Recommended

Carbon Core
Memory Manager
Carbon supports the majority of the Memory Manager programming interface. Changes primarily affect applications that use zones, system memory, or temporary memory. For example, temporary memory allocations in Mac OS X are allocated in the application’s address space. As a result, calling TempNewHandle is effectively the same as calling NewHandle.

Carbon does not support functions for accessing the system heap, as the system heap in unavailable in Mac OS X.

By adhering to the following guidelines, you can increase your application’s compliance with Mac OS X memory management:

• Try to use memory only within your own application heap. Review the places where you allocate memory in the system heap.

• Do not pass pointers to data among applications through Apple events, Gestalt routines, or other means. For example, don’t share Toolbox data structures between applications, because in Mac OS X, each application will run in its own protected address space.

• Do not use inline, hard-coded addresses.

• Do not modify the zone header by calling the MoreMasters function. You should instead call the function MoreMasterPointers. Note, however, that master pointer blocks do not need to be preallocated or optimized in the Mac OS X environment, so MoreMasterPointers will only benefit Carbon applications running on Mac OS 8 or 9.

• Don’t make assumptions about the layout of memory, such as the relative position of data stored in heaps, stacks, and other memory areas.

• Don’t use the DisposePtr or DisposeHandle functions on pointers or handles allocated by Toolbox managers. For example, don’t call the function DisposeHandle on a control allocated by the NewControl function; use DisposeControl instead.

• Because Mac OS X applications run in a large, protected memory space, memory sizing routines such as MaxMem and FreeMem work differently than before and just return a large fixed value.

MoreMasters

You should instead use MoreMasterPointers. Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.
Human Interface Toolbox
Scrap Manager
Carbon supports only the LoadScrap and UnloadScrap functions from the original Scrap Manager. However, Carbon supplies new features, including support for "promises," to the Scrap Manager.

LoadScrap

Carbon applications may continue calling this function on Mac OS 8; however, on Mac OS X it does nothing and is no longer necessary. Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.
Text and Other International Services
Font Manager
Carbon supports most Font Manager functions. However, you no longer have direct access to Font Manager data structures, and you are not able to access the list of fonts (or the data in those fonts) using the Resource Manager. You should modify your application to use the new accessor functions.

GetFNum

You should instead use FMGetFontFamilyFromName. Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

GetFontName

You should instead use FMGetFontFamilyName. Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.
TextEdit
Carbon supports most TextEdit functions, but TextEdit functionality has been replaced by Multilingual Text Engine (MLTE). Although there is not a one-to-one correspondence between APIs in these two technologies, you are encouraged to use MLTE in place of TextEdit.

The Carbon version of TextEdit replaces the low memory accessors for TextEdit structures as follows:

TEGet/SetScrapLength replaces LMGet/SetTEScrpLength

TEGet/SetScrapHandle replaces LMGet/SetTEScrpHandle

TEGet/SetDoTextHook replaces LMGet/SetTEDoText

TEGet/SetRecalcHook replaces LMGet/SetTERecal

The Carbon version also has a new accessor for the FindWord hook: TEGet/SetFindWordHook.

TESetWordBreak is not available in Carbon, and you should not override wordBreak in order to customize wordBreak behavior. Instead, override the FindWord hook using the TEGet/SetFindWordHook accessors. Previously, the wordBreak hook was used on Roman-only systems, a distinction that no longer exists in Carbon. TERec's wordBreak field is ignored in Carbon.

TEActivate

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEAutoView

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TECalText

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEClick

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TECopy

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TECut

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEDeactivate

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEDelete

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEDispose

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEFromScrap

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEIdle

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEInsert

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEKey

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TENew

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEPaste

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEScrapHandle

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEScroll

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TESetSelect

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TETextBox

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

TEUpdate

Available in Carbon 1.0.2 and later when running Mac OS 8.1 or later.

Unsupported API

Carbon Core
File Manager
While Carbon supports most of the File Manager interface, there are a number of significant changes.

You should not access File Manager structures directly if accessor functions for the structure exist. For example, you should call PBGetFCBInfo rather than calling LMGetFCBSPtr and walking the FCB table.

Similarly, you should create file system specification (FSSpec) records using the functions PBMakeFSSpec or FSMakeFSSpec instead of filling in your own structures. File system specification records must contain a volume reference number, a parent directory, and a name. Substituting a working directory for the volume reference number or a full or partial pathname for the name is not supported.

File Manager functions that support MFS (the Macintosh file system) are not supported in Carbon. These include

• functions, such as OpenWD and GetWDInfo, that manipulate working directories

• functions that identify a file or folder using a volume reference number and pathname but not a parent directory ID. You should use the HFS version of these calls (which use a parent directory ID) instead.

Functions that cannot be called by PowerPC applications (such as PBGetAltAccessSync and PBGetAltAccessAsync) are not supported.

You should use only documented File Manager interfaces in your application. For example, you should use a documented API call to get low memory information rather than access undocumented low memory global variables or vectors directly.

The default volume format for Carbon is the Mac OS Extended format; in most cases you will not need to modify your application to gain this volume support.

Carbon does not support the File System Manager (FSM) functions defined in the header file FSM.h. FSM plug-ins today often must make assumptions about File Manager data structures that may not be valid in Carbon. In addition, some plug-ins use 68K calling conventions when calling internal File Manager functions. Since the File System Manager was designed for a single-threaded file system, it cannot use the full threading capabilities of Mac OS X.

CloseWD

Working directories are unsupported in Carbon. Not available in Carbon.

Create

This function is not supported in Carbon. Use the function FSpCreate instead. To create a file with a long Unicode filename, or a file that can grow beyond 2 GB, use the FSCreateFileUnicode function. Not available in Carbon.

FSDelete

This function is not supported in Carbon. Use the function FSpDelete instead. Not available in Carbon.

FSOpen

This function is not supported in Carbon. Use the function FSpOpenDF to open the data fork of a file on HFS volumes; use the function FSpOpenRF to open the resource fork of a file on HFS volumes.

To open a data or resource fork that is larger than 2 GB on an HFS Plus volume, use the FSOpenFork function. Not available in Carbon.

GetFInfo

This function is not supported in Carbon. Use the function FSpGetFInfo instead. Not available in Carbon.

GetVol

This function is unsupported in Carbon. Instead, use the HGetVol function. Not available in Carbon.

OpenWD

Working directories are unsupported in Carbon. Not available in Carbon.

PBGetFInfoSync

This function is not supported in Carbon. Use the function PBHGetFInfoSync instead.

To get information about files and directories on HFS Plus volumes, use the PBGetCatalogInfoSync function. Not available in Carbon.

PBGetVInfoSync

This function is not supported in Carbon. Use the function PBHGetVInfoSync instead. Not available in Carbon.

PBGetVolSync

This function is unsupported in Carbon. Instead, use the PBHGetVolSync function. Not available in Carbon.

PBOpenWDSync

Working directories are unsupported in Carbon. Not available in Carbon.

SetFInfo

This function is not supported in Carbon. Use the function FSpSetFInfo instead. Not available in Carbon.

SetVol

This function is unsupported in Carbon. Instead, use the HSetVol function. Not available in Carbon.
Low Memory Accessors
Carbon supports many of the accessor functions for low-memory variables. However, you should always avoid using low-memory accessors if there are direct Mac OS Toolbox calls to obtain the same information. For example:

• Use the function TickCount instead of the low-memory accessor function LMGetTicks.

• Use the function FrontWindow instead of the low-memory accessor function LMGetWindowList, when possible.

• Use the function PBGetFCBInfo instead of walking the FCB table with the low-memory accessor function LMGetFCBSPtr.

In general, don’t think of the values returned by low-memory accessor routines as residing in low memory—think of them as information, possibly associated with a specific Toolbox manager, that is returned by the Mac OS. In the future, Apple may supply new functions, distributed among the Mac OS Toolbox managers, for retrieving this information.

Some low-memory accessor functions are obsolete in Mac OS X. The following Resource Manager-related functions are not supported:

• LMGetTopMapHndl and LMSetTopMapHndl

• LMGetSysMapHndl and LMSetSysMapHndl

• LMGetCurMapHndl and LMSetCurMapHndl

LMGetCurDirStore

Not available in Carbon.

LMGetMBarHeight

Use GetMBarHeight instead. If you are using this function to hide the menu bar, use Hide/ShowMenuBar instead. Not available in Carbon.

LMGetTEScrpLength

Not available in Carbon.

LMGetTime

You should instead use GetDateTime. Not available in Carbon.

LMSetTEScrpLength

Not available in Carbon.
Memory Management Utilities
While Carbon supports most of the Memory Management Utilities, there are changes to functions that assume a 68K runtime environment.

• Functions that flush caches on 68K processors (such as FlushInstructionCache, FlushDataCache, and FlushCodeCacheRange) are no longer supported.

• Functions such as SetA5 or SetCurrentA5 do nothing when running in Mac OS X. However, these functions should work normally when running in Mac OS 8 or 9.

• The functions GetMMUMode and SwapMMUMode are not supported because all PowerPC applications use 32-bit addressing, even if they are not Carbon-compliant.

• The SysEnvirons function is no longer supported since the Gestalt Manager can provide the same information. You should call the functions FindFolder and Gestalt instead.

SysEnvirons

Uses working directories. Use FindFolder and Gestalt instead. Not available in Carbon.
Memory Manager
Carbon supports the majority of the Memory Manager programming interface. Changes primarily affect applications that use zones, system memory, or temporary memory. For example, temporary memory allocations in Mac OS X are allocated in the application’s address space. As a result, calling TempNewHandle is effectively the same as calling NewHandle.

Carbon does not support functions for accessing the system heap, as the system heap in unavailable in Mac OS X.

By adhering to the following guidelines, you can increase your application’s compliance with Mac OS X memory management:

• Try to use memory only within your own application heap. Review the places where you allocate memory in the system heap.

• Do not pass pointers to data among applications through Apple events, Gestalt routines, or other means. For example, don’t share Toolbox data structures between applications, because in Mac OS X, each application will run in its own protected address space.

• Do not use inline, hard-coded addresses.

• Do not modify the zone header by calling the MoreMasters function. You should instead call the function MoreMasterPointers. Note, however, that master pointer blocks do not need to be preallocated or optimized in the Mac OS X environment, so MoreMasterPointers will only benefit Carbon applications running on Mac OS 8 or 9.

• Don’t make assumptions about the layout of memory, such as the relative position of data stored in heaps, stacks, and other memory areas.

• Don’t use the DisposePtr or DisposeHandle functions on pointers or handles allocated by Toolbox managers. For example, don’t call the function DisposeHandle on a control allocated by the NewControl function; use DisposeControl instead.

• Because Mac OS X applications run in a large, protected memory space, memory sizing routines such as MaxMem and FreeMem work differently than before and just return a large fixed value.

MaxApplZone

This routine is not needed by PowerPC-based applications because they can specify a stack size in the cfrg resource. Not available in Carbon.
Mixed Mode Manager
Mac OS X will not run 68K code. However, Carbon supports universal procedure pointers (UPPs) transparently, so you do not have to change them or remove them from your code. You may want to keep Mixed Mode Manager calls in your application to maintain compatibility with the current version of the Mac OS. Mixed Mode Manager calls from Carbon applications running on Mac OS 8 or 9 function normally.

Typically, applications should use ProcPtrs for their own code and plug-ins and use the new system-supplied UPP creation functions for Toolbox callback UPPs. You still need to dispose of those UPPs (using the corresponding disposal function), so that any allocated memory can be cleaned up when your application is running on Mac OS 8 or 9.

CallUniversalProc

Not available in Carbon.

DisposeRoutineDescriptor

Use a specific UPP disposal routine; e.g., use Dispose ControlDefinitionProc instead of the more general function DisposeRoutineDescriptor. Not available in Carbon.

NewRoutineDescriptor

Applications should use ProcPtrs for their own code and plug-ins, and use the system-supplied UPP creation functions (such as NewModalFilterProc) for Toolbox callback UPPs. You still need to dispose of those UPPs using the appropriate system-supplied disposal function so that any allocated memory can be cleaned up when your application is running on Mac OS 8 or 9. Not available in Carbon.
Patch Manager
Carbon does not support the Patch Manager and there currently is no direct replacement. However, you can programmatically extend the system in various ways, such as by loading plug-ins or shared libraries, or by writing I/O Kit drivers or other kernel extensions.

GetToolTrapAddress

Not available in Carbon.

GetToolboxTrapAddress

Not available in Carbon.

NGetTrapAddress

Not available in Carbon.

SetToolTrapAddress

Not available in Carbon.
Resource Manager
Carbon supports the Resource Manager, with the following exceptions, which primarily involve ROM resource functions and functions that access the resource map:

• There is no ROM in Mac OS X, so the ROM-related functions RGetResource and TempInsertROMMap are not supported.

• There is no way to directly walk the resource chain. Instead, Carbon supplies a small number of new functions for proper management of the resource chain.

• The function RsrcMapEntry, which provides an interface to the map handle format, is not supported.

• The low-memory global variables JCheckLoad, TopMapHndl, CurMap, and SysMapHndl are not supported.

Note also that you should not attempt to store resources in the system heap, since you will not have the same access to the system heap as you do in previous versions of the Mac OS.

CreateResFile

This function is no longer supported. Instead, you may use any of the functions FSCreateResourceFile, FSpCreateResFile, and HCreateResFile instead. Not available in Carbon.

OpenResFile

Carbon does not support MFS calls. Use HFS+ calls instead. Not available in Carbon.
Common OS Services
Disk Initialization Manager
Carbon does not support the Disk Initialization Manager. Disk Initialization is supported by the system. Mac OS X applications that need to initialize disks can do so using new APIs in the IOKit.

Note that Carbon does not support the diskEvt event. If your application needs to identify disk events, you will need to handle volume events which will be available in the Carbon Event Manager.

DIBadMount

Not available in Carbon.
Graphics Services
Printing Manager
The original Printing Manager defined in Printing.h is not supported in Carbon. Carbon applications must use the Carbon Printing Manager.

PrClose

Replace PrClose with PMEnd. Not available in Carbon.

PrCloseDoc

Replace PrCloseDoc with PMEndDocument. Not available in Carbon.

PrClosePage

Replace PrClosePage with PMEndPage. Not available in Carbon.

PrError

Replace PrError with PMError. Not available in Carbon.

PrGeneral

Replace PrGeneral with PMGeneral. Not available in Carbon.

PrJobDialog

Replace PrJobDialog with PMPrintDialog. Not available in Carbon.

PrOpen

Replace PrOpen with PMBegin. Not available in Carbon.

PrOpenDoc

Replace PrOpenDoc with PMBeginDocument. Not available in Carbon.

PrOpenPage

Replace PrOpenPage with PMBeginPage. Not available in Carbon.

PrPicFile

This function is obsolete. Printer drivers must perform their own spooling. Not available in Carbon.

PrSetError

Replace PrSetError with PMSetError. Not available in Carbon.

PrStlDialog

Replace PrStlDialog with PMPageSetUpDialog. Not available in Carbon.

PrValidate

Replace PrValidate with calls to PMValidatePageFormat and PMValidatePrintSettings. Not available in Carbon.

PrintDefault

Replace PrintDefault with calls to PMDefaultPageFormat and PMDefaultPrintSettings. Not available in Carbon.
QuickDraw Manager
Carbon supports most of the QuickDraw programming interface.

Carbon applications should use CreateNewPort and DisposePort to open and close graphics ports, rather than OpenPort, OpenCPort, ClosePort, and CloseCPort.

Carbon adds functions to get and set port data without accessing port data structures directly. For example, you can use such functions as GetPixBounds, GetPortFillPixPat, SetPortBounds, and SetPortPenSize.

In the past, parts of QuickDraw have been documented in Inside Macintosh as the Color Manager and Cursor Utilities. Note, however, that Inside Macintosh: Imaging with QuickDraw describes animated cursor functions, such as SpinCursor, that are available in the MPW programming environment and possibly in other environments, but not in system software. These animated cursor functions, which are defined in the MPW interface file CursorCtl.h, are not supported by Carbon.

InitGraf

In Carbon, the Mac OS automatically initializes Quickdraw for every application. When the Mac OS initializes QuickDraw, the Mac OS also automatically calls InitGraf.

Not available in Carbon.
Hardware Interfaces
Device Manager
Carbon does not support the Device Manager as an interface for installing or interacting with device drivers. Carbon supports only the Device Manager APIs that allow applications to read and write to open files.

Other software products (such as desk accessories) that have relied on the Device Manager interface in the past should be converted into Carbon applications.

In Mac OS X, applications can access serial devices through the device file system. An application uses the I/O Kit to obtain a path to a device file in the /dev directory. It can then use traditional UNIX serial port access through the POSIX termios API. For more detail, see Inside Mac OS X: Accessing Hardware From Applications.

CloseDriver

Not available in Carbon.

Control

Not available in Carbon.

KillIO

Not available in Carbon.

OpenDeskAcc

Desk accessories are not supported in Carbon. Not available in Carbon.

OpenDriver

Not available in Carbon.

PBControlAsync

Not available in Carbon.

PBControlSync

Not available in Carbon.

PBOpenAsync

Not available in Carbon.

PBOpenSync

Not available in Carbon.
Serial Driver
Carbon does not support the Serial Driver, because it accesses hardware directly. You can use this manager through a non-Carbon plug-in for Mac OS 8. For Mac OS X, you should use the comparable APIs supplied with the IOKit.

SerClrBrk

Not available in Carbon.

SerGetBuf

Not available in Carbon.

SerReset

Not available in Carbon.

SerSetBrk

Not available in Carbon.

SerSetBuf

Not available in Carbon.
Human Interface Toolbox
Dialog Manager
Carbon supports the majority of the Dialog Manager. However, your application must access Dialog Manager data structures only through the supplied accessor functions. Furthermore, your application must use the functions provided for creating and disposing of Dialog Manager data structures.

CloseDialog

The CloseDialog function is not supported because developers do not allocate their own memory for dialog boxes in Carbon. Use the DisposeDialog function to dismiss a dialog box instead. Not available in Carbon.

InitDialogs

InitDialogs is not supported in Carbon. There is no need to initialize the Dialog Manager because the shared library is loaded as needed. Not available in Carbon.
Event Manager
Carbon supports the majority of the Event Manager.

High-level events APIs (as contained in EPPC.h) are not supported. You should use Apple events instead.

Carbon does not support the diskEvt event. Support for volume mount and unmount events will be available in the Carbon Event Manager.

Low-level event queue functions, such as GetEvQHdr and PPostEvent, are no longer supported.

Application-defined function-key procedures are not supported in Carbon.

Note that Carbon introduces a new event model to the Mac OS, with a new set of APIs. Developers are strongly encouraged to use the Carbon Event Manager APIs in place of the Event Manager APIs. The Carbon Event Manager offers a simple yet flexible approach to event handling that greatly reduces the amount of code needed to write a basic application. Morevover, the Carbon Event Manager's streamlined event handling enhances system performance on Mac OS X through more efficient allocation of processing time. Applications that use the Carbon Event Manager not only run better on Mac OS X, they help improve overall performance and responsiveness, creating a better experience for our customers.

SystemClick

Desk accessories are not supported in Carbon. Not available in Carbon.

SystemTask

In Carbon, the Event Manager automatically handles all task scheduling. Not available in Carbon.
Help Manager
Carbon does not support the classic Help Manager defined by Balloons.h. Your applications should use the Carbon Help Manager instead, defined in MacHelp.h

HMGetHelpMenuHandle

Not available in Carbon.
Menu Manager
Carbon supports the Menu Manager, with the following changes:

• Your application must use the functions defined by the Menu Manager whenever it creates and disposes of Menu Manager data structures. Some applications, for example, create menus by using the Resource Manager function GetResource (instead of the Menu Manager function GetMenu) and dispose of them by calling ReleaseResource instead of DisposeMenu. This practice is not supported in Carbon.

• The MenuInfo structure is opaque in Carbon. You must revise your application so that it accesses Menu Manager data structures only through accessor functions.

• There are several Menu Manager functions that deal with manipulating menu color information tables. Apple recommends that you stop using them. The Appearance Manager generally disregards these color tables and instead uses the colors defined for the current appearance.

• You are strongly encouraged to adopt the standard Mac OS 8 menu definition procedures (also known as MDEFs) in your application. Your menus will then inherit the systemwide appearance and, furthermore, take advantage of other Menu Manager enhancements planned for the future. Note, however, that if you must use custom menu definition procedures, you must compile them as PowerPC-native code.

CheckItem

CheckItem has been renamed to CheckMenuItem in Carbon. Not available in Carbon.

CountMItems

CountMItems has been renamed to CountMenuItems in Carbon. Not available in Carbon.

DisableItem

Replaced by DisableMenuItem. Not available in Carbon.

EnableItem

Replaced by EnableMenuItem. Not available in Carbon.

InitMenus

InitMenus is not supported in Carbon. There is no need to initialize the Menu Manager because the shared library is loaded as needed. Not available in Carbon.

SystemEdit

Carbon does not support desk accessories. Not available in Carbon.
Scrap Manager
Carbon supports only the LoadScrap and UnloadScrap functions from the original Scrap Manager. However, Carbon supplies new features, including support for "promises," to the Scrap Manager.

GetScrap

You should instead use the functions GetScrapFlavorSize and GetScrapFlavorData. Not available in Carbon.

PutScrap

You should instead use the function PutScrapFlavor. Not available in Carbon.

ZeroScrap

You should instead use the function ClearCurrentScrap. Not available in Carbon.
Standard File Package
Carbon does not support the Standard File Package. You must use Navigation Services instead.

SFGetFile

Not available in Carbon.

SFPGetFile

Not available in Carbon.

SFPPutFile

Not available in Carbon.

SFPutFile

Not available in Carbon.
Window Manager
Carbon supports the Window Manager. Be aware, however, that if you use custom window definition procedures (also known as WDEFs), you must compile them as PowerPC-native code. In addition:

• Your application must use the functions defined by the Window Manager whenever it creates and disposes of Window Manager data structures. For example, instead of directly creating and disposing of window records, applications must call such Window Manager functions as GetNewCWindow and DisposeWindow.

• You must revise your application so that it accesses Window Manager data structures only through accessor functions.

• You are encouraged to adopt the standard Mac OS 8 window definition procedures in your application. Applications that use the standard Mac OS 8 window definition procedures inherit the Mac OS 8 human interface appearance. Applications that use custom window definition procedures work correctly, but because custom definition procedures invoke their own drawing routines, Mac OS 8 can’t draw these applications with the current appearance.

CloseWindow

The CloseWindow function is not supported because developers do not allocate their own memory for windows in Carbon. Use the DisposeWindow function to remove a window instead. Not available in Carbon.

InitWindows

InitWindows is not supported in Carbon. There is no need to initialize the Window Manager because the shared library is loaded as needed. Not available in Carbon.

InvalRect

Calls InvalWindowRect, which takes a window pointer as an additional parameter.

Invalidation works on windows, not ports, and because windows are not ports in Carbon, this change is necessary. Not available in Carbon.

ValidRect

Calls ValidWindowRect, which takes a window pointer as an additional parameter. Validation works on windows, not ports, and because windows are not ports in Carbon, this change is necessary. Not available in Carbon.
Networking and Communication Services
Communications Toolbox
Carbon does not support the Communications Toolbox.

CRMSearch

Not available in Carbon.

InitCRM

Not available in Carbon.
Text and Other International Services
Font Manager
Carbon supports most Font Manager functions. However, you no longer have direct access to Font Manager data structures, and you are not able to access the list of fonts (or the data in those fonts) using the Resource Manager. You should modify your application to use the new accessor functions.

InitFonts

There is no need to initialize the Font Manager because the shared library is loaded as needed. Not available in Carbon.
Text Utilities
Carbon supports the majority of Text Utilities. However, many obsolete functions (such as those prefixed with iu or IU ) are not supported.

c2pstr

You should instead use CopyCStringToPascal. Not available in Carbon.

p2cstr

You should instead use CopyPascalStringToC. Not available in Carbon.
TextEdit
Carbon supports most TextEdit functions, but TextEdit functionality has been replaced by Multilingual Text Engine (MLTE). Although there is not a one-to-one correspondence between APIs in these two technologies, you are encouraged to use MLTE in place of TextEdit.

The Carbon version of TextEdit replaces the low memory accessors for TextEdit structures as follows:

TEGet/SetScrapLength replaces LMGet/SetTEScrpLength

TEGet/SetScrapHandle replaces LMGet/SetTEScrpHandle

TEGet/SetDoTextHook replaces LMGet/SetTEDoText

TEGet/SetRecalcHook replaces LMGet/SetTERecal

The Carbon version also has a new accessor for the FindWord hook: TEGet/SetFindWordHook.

TESetWordBreak is not available in Carbon, and you should not override wordBreak in order to customize wordBreak behavior. Instead, override the FindWord hook using the TEGet/SetFindWordHook accessors. Previously, the wordBreak hook was used on Roman-only systems, a distinction that no longer exists in Carbon. TERec's wordBreak field is ignored in Carbon.

TEInit

There is no need to initialize TextEdit because the shared library is loaded as needed. Not available in Carbon.



Analysis of Access to Low Memory Addresses

Address
Access Type
Located in Function
Comments
020C
Read
checkstack
Access supported if through LMGetTime
020C
Read
checkstack
Access supported if through LMGetTime
020C
Read
checkstack
Access supported if through LMGetTime
020C
Read
checkstack
Access supported if through LMGetTime
020C
Read
aboutCometReg
Access supported if through LMGetTime
020C
Read
aboutCometReg
Access supported if through LMGetTime
020C
Read
opn_usr
Access supported if through LMGetTime
09D6
Read
evtmousedown
Access supported if through LMGetWindowList
09D6
Write
evtmousedown
Access supported if through LMSetWindowList
09D6
Write
evtmousedown
Access supported if through LMSetWindowList
09D6
Write
evtmousedown
Access supported if through LMSetWindowList
0AB4
Read
puttextscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
puttextscrap
Access supported if through LMGetTEScrpHandle
0AB0
Write
puttextscrap
Access supported if through LMSetTEScrpLength
0AB4
Read
puttextscrap
Access supported if through LMGetTEScrpHandle
0AB0
Write
puttextscrap
Access supported if through LMSetTEScrpLength
0AB4
Read
puttextscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
puttextscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
puttextscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
puttextscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
gettextscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
gettextscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
gettextscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
releasescrap
Access supported if through LMGetTEScrpHandle
0AB0
Write
scraptote
Access supported if through LMSetTEScrpLength
0AB4
Read
tetoscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
tetoscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
tetoscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
tetoscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
tetoscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
tetoscrap
Access supported if through LMGetTEScrpHandle
0AB4
Read
tetoscrap
Access supported if through LMGetTEScrpHandle
0AB0
Write
tetoscrap
Access supported if through LMSetTEScrpLength
0AB4
Read
scraptranslate
Access supported if through LMGetTEScrpHandle
0AB4
Read
scraptranslate
Access supported if through LMGetTEScrpHandle
0AB4
Read
scrapsave
Access supported if through LMGetTEScrpHandle
0AB4
Read
scraprestore
Access supported if through LMGetTEScrpHandle
020C
Read
screen_service
Access supported if through LMGetTime
011C
Read
testseropen
Access supported if through LMGetUTableBase
0AB4
Read
aecut
Access supported if through LMGetTEScrpHandle
0AB4
Read
aecut
Access supported if through LMGetTEScrpHandle
0AB4
Read
aecut
Access supported if through LMGetTEScrpHandle
0AB4
Read
aecut
Access supported if through LMGetTEScrpHandle
0AB4
Read
aecopy
Access supported if through LMGetTEScrpHandle
0AB4
Read
aecopy
Access supported if through LMGetTEScrpHandle
0AB4
Read
aecopy
Access supported if through LMGetTEScrpHandle
0AB4
Read
aecopy
Access supported if through LMGetTEScrpHandle
0214
Write
saveconfig
Access supported if through LMSetSFSaveDisk
0398
Write
saveconfig
Access supported if through LMSetCurDirStore
0214
Write
saveconfig
Access supported if through LMSetSFSaveDisk
0398
Write
saveconfig
Access supported if through LMSetCurDirStore
0214
Read
saveconfig
Access supported if through LMGetSFSaveDisk
0398
Read
saveconfig
Access supported if through LMGetCurDirStore
0214
Write
menufile
Access supported if through LMSetSFSaveDisk
0398
Write
menufile
Access supported if through LMSetCurDirStore
0214
Write
menufile
Access supported if through LMSetSFSaveDisk
0398
Write
menufile
Access supported if through LMSetCurDirStore
0AB4
Read
menuedit
Access supported if through LMGetTEScrpHandle
0AB0
Read
menuedit
Access supported if through LMGetTEScrpLength
0AB4
Write
menuedit
Access supported if through LMSetTEScrpHandle
0AB0
Write
menuedit
Access supported if through LMSetTEScrpLength
0AB4
Write
menuedit
Access supported if through LMSetTEScrpHandle
0AB0
Write
menuedit
Access supported if through LMSetTEScrpLength
0AB4
Read
menuedit
Access supported if through LMGetTEScrpHandle
0AB4
Write
menuedit
Access supported if through LMSetTEScrpHandle
0AB0
Write
menuedit
Access supported if through LMSetTEScrpLength
0AB0
Read
menuedit
Access supported if through LMGetTEScrpLength
0AB4
Read
menuedit
Access supported if through LMGetTEScrpHandle
0AB0
Read
menuedit
Access supported if through LMGetTEScrpLength
0AB0
Read
menuedit
Access supported if through LMGetTEScrpLength
0AB0
Read
menuedit
Access supported if through LMGetTEScrpLength
0AB0
Read
menuedit
Access supported if through LMGetTEScrpLength
0AB0
Read
menuedit
Access supported if through LMGetTEScrpLength
0AB0
Read
menuedit
Access supported if through LMGetTEScrpLength
0214
Write
menuedit
Access supported if through LMSetSFSaveDisk
0398
Write
menuedit
Access supported if through LMSetCurDirStore
0AB0
Read
menucursor
Access supported if through LMGetTEScrpLength
0AB4
Read
menucursor
Access supported if through LMGetTEScrpHandle
0AB0
Read
menucursor
Access supported if through LMGetTEScrpLength
0A1C
Read
reenablecomet
Access supported if through LMGetMenuList
0A1C
Read
myDrawMenuBar
Access supported if through LMGetMenuList
0214
Write
SelectDirectory
Access supported if through LMSetSFSaveDisk
0398
Write
SelectDirectory
Access supported if through LMSetCurDirStore
0214
Read
SelectDirectory
Access supported if through LMGetSFSaveDisk
0AB4
Read
regdialog
Access supported if through LMGetTEScrpHandle
0AB4
Read
regdialog
Access supported if through LMGetTEScrpHandle
0AB4
Read
regdialog
Access supported if through LMGetTEScrpHandle
0AB4
Read
regdialog
Access supported if through LMGetTEScrpHandle
0AB4
Read
regdialog
Access supported if through LMGetTEScrpHandle
0AB4
Read
regdsetitem
Access supported if through LMGetTEScrpHandle
0AB4
Read
regdsetitem
Access supported if through LMGetTEScrpHandle
0BAA
Read
GetDlogOrigin
Access supported if through LMGetMBarHeight
0214
Write
filerename
Access supported if through LMSetSFSaveDisk
0398
Write
filerename
Access supported if through LMSetCurDirStore
0214
Write
ssh_getkeyfile
Access supported if through LMSetSFSaveDisk
0398
Write
ssh_getkeyfile
Access supported if through LMSetCurDirStore
016A
Read
sshrsakeygen
Access supported if through LMGetTicks
0214
Write
savetext
Access supported if through LMSetSFSaveDisk
0398
Write
savetext
Access supported if through LMSetCurDirStore
0214
Write
savetext
Access supported if through LMSetSFSaveDisk
0398
Write
savetext
Access supported if through LMSetCurDirStore
0214
Read
savetext
Access supported if through LMGetSFSaveDisk
0398
Read
savetext
Access supported if through LMGetCurDirStore
020C
Read
drawtimer
Access supported if through LMGetTime
016A
Read
Receive
Access supported if through LMGetTicks
016A
Read
Receive
Access supported if through LMGetTicks
016A
Read
Ignore
Access supported if through LMGetTicks
016A
Read
Ignore
Access supported if through LMGetTicks
016A
Read
ReceiveBuffer
Access supported if through LMGetTicks
016A
Read
ReceiveBuffer
Access supported if through LMGetTicks
020C
Read
XReceive
Access supported if through LMGetTime
020C
Read
XReceive
Access supported if through LMGetTime
020C
Read
XReceive
Access supported if through LMGetTime
020C
Read
XReceive
Access supported if through LMGetTime
020C
Read
XReceive
Access supported if through LMGetTime
020C
Read
XReceive
Access supported if through LMGetTime
020C
Read
XTransmit
Access supported if through LMGetTime
020C
Read
XTransmit
Access supported if through LMGetTime
020C
Read
XTransmit
Access supported if through LMGetTime
020C
Read
XTransmit
Access supported if through LMGetTime
020C
Read
XTransmit
Access supported if through LMGetTime
020C
Read
XTransmit
Access supported if through LMGetTime
016A
Read
SleepZM
Access supported if through LMGetTicks
016A
Read
SleepZM
Access supported if through LMGetTicks
016A
Read
RBZM
Access supported if through LMGetTicks
016A
Read
RBZM
Access supported if through LMGetTicks
020C
Read
SessionStartup
Access supported if through LMGetTime
020C
Read
ZTransmit
Access supported if through LMGetTime
020C
Read
ZTransmit
Access supported if through LMGetTime
020C
Read
ZTransmit
Access supported if through LMGetTime
020C
Read
ZTransmit
Access supported if through LMGetTime
020C
Read
ZReceive
Access supported if through LMGetTime
020C
Read
ZReceive
Access supported if through LMGetTime
020C
Read
ReceiveFiles
Access supported if through LMGetTime
020C
Read
ReceiveFiles
Access supported if through LMGetTime
020C
Read
ReceiveFiles
Access supported if through LMGetTime
020C
Read
ReceiveFiles
Access supported if through LMGetTime
020C
Read
ReceiveFileZM
Access supported if through LMGetTime
020C
Read
ProcedeHeader
Access supported if through LMGetTime
020C
Read
CleanupFile
Access supported if through LMGetTime
016A
Read
ssh_scp_recv
Access supported if through LMGetTicks
016A
Read
ssh_scp_recv
Access supported if through LMGetTicks
020C
Read
zmtimerproc
Access supported if through LMGetTime
020C
Read
Update
Access supported if through LMGetTime
020C
Read
UpdateProgress
Access supported if through LMGetTime
020C
Read
binhexdecode
Access supported if through LMGetTime
020C
Read
binhexdecode
Access supported if through LMGetTime
020C
Read
binhexdecode
Access supported if through LMGetTime
020C
Read
binhexdecode
Access supported if through LMGetTime
020C
Read
binhexdecode
Access supported if through LMGetTime
016A
Read
MonitorText
Access supported if through LMGetTicks
020C
Read
ft3270
Access supported if through LMGetTime
020C
Read
tntfdn
Access supported if through LMGetTime
0AB0
Read
textwpaste
Access supported if through LMGetTEScrpLength
0A1C
Read
stdtoken
Access supported if through LMGetMenuList
020C
Read
stdtoken
Access supported if through LMGetTime
0AB4
Read
proc_token
Access supported if through LMGetTEScrpHandle
0AB4
Read
ibmproc_token
Access supported if through LMGetTEScrpHandle
020C
Read
ft_complete
Access supported if through LMGetTime
020C
Read
ft_complete
Access supported if through LMGetTime
020C
Read
ft_running
Access supported if through LMGetTime
020C
Read
do_sink
Access supported if through LMGetTime
020C
Read
sink_file
Access supported if through LMGetTime
020C
Read
sink_file
Access supported if through LMGetTime
020C
Read
do_source
Access supported if through LMGetTime
020C
Read
source_file
Access supported if through LMGetTime
020C
Read
source_file
Access supported if through LMGetTime
020C
Read
saversakey
Access supported if through LMGetTime
020C
Read
saversakey
Access supported if through LMGetTime
020C
Read
saversapublickey
Access supported if through LMGetTime
020C
Read
saversapublickey
Access supported if through LMGetTime



Analysis of Resources Loaded into System Heap

These resources have the system heap bit set. The resource name is included, if defined.

Resource Name
Type
ID
<none>
'CURS'
5

Copyright 1998-2001 Apple Computer, Inc. All rights reserved.
